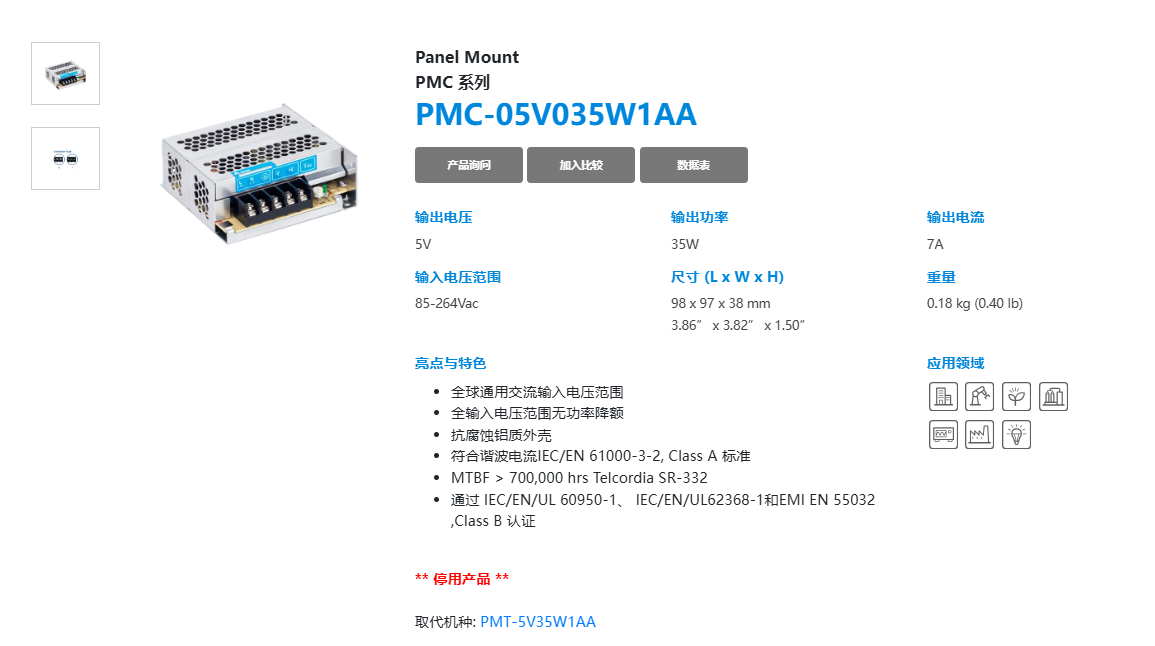

PMC-05V035W1AA
輸出電壓-5V
輸出功率-35W
輸出電流-7A
輸入電壓范圍-85-264Vac

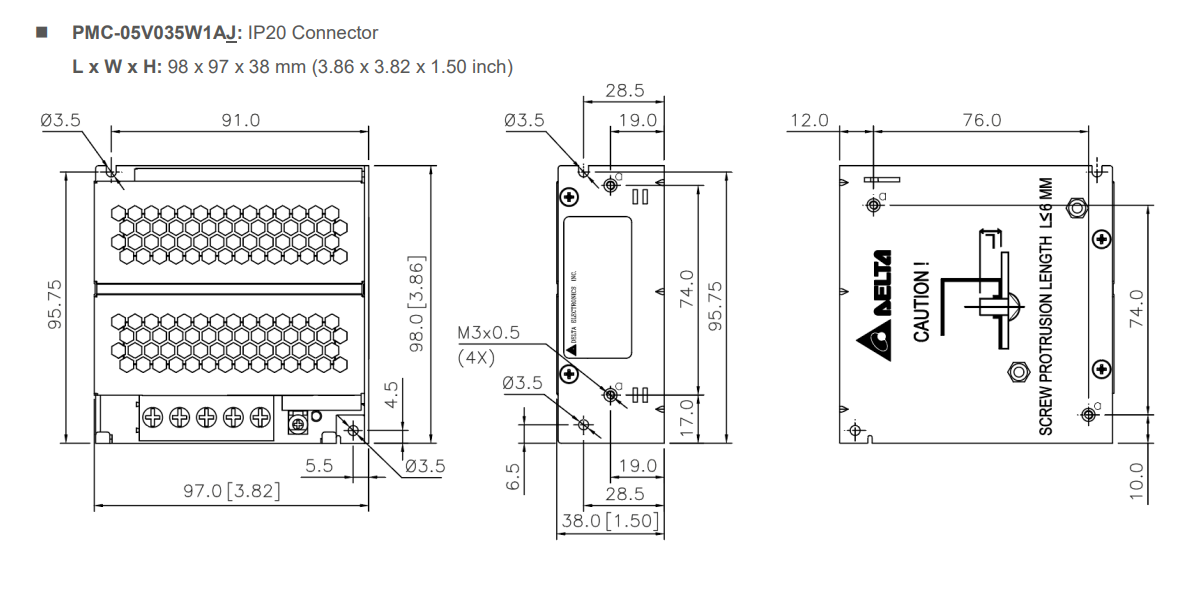

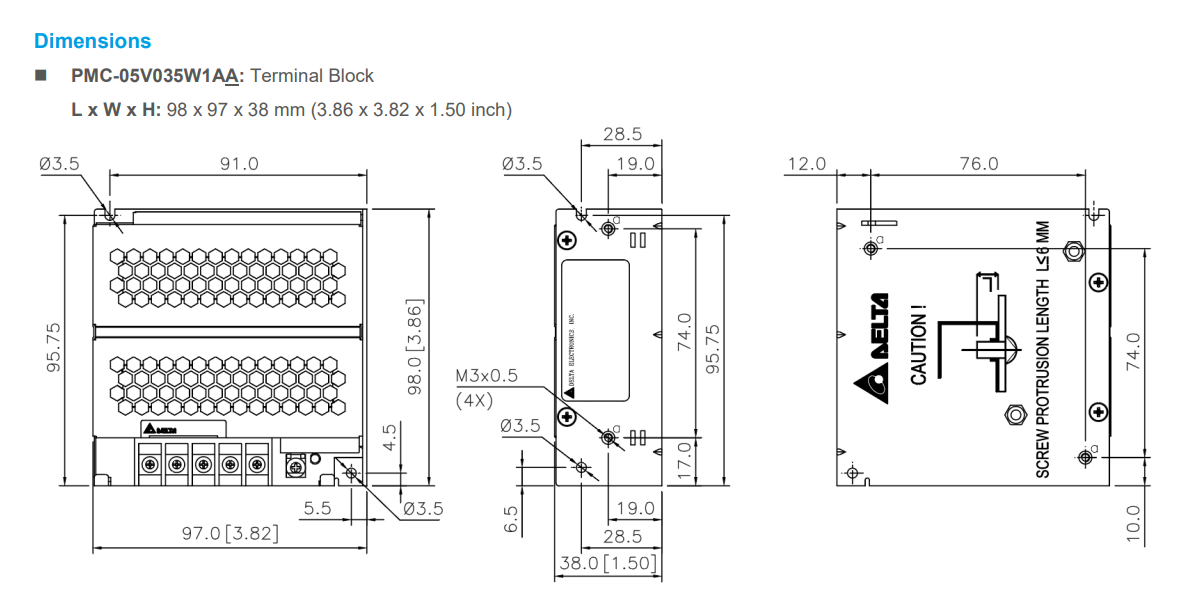

尺寸-98 x 97 x 38 mm-3.86” x 3.82” x 1.50”
重量-0.18 kg (0.40 lb)
| 輸出 | PMC-05V015W1AA | PMC-12V150W1B | PMC-12V600W1BA | |
| 輸出電壓 | 5 V | 12 V | 12 V | |
| 輸出電壓范圍 | 4.75-5.50 V | 11-14 V | 10.8-13.2 V | |
| 輸出電流 | 0-3.0 A | 0-12.5 A | 0-50 A | |
| 輸出功率 | 15 W | 150 W | 600W | |
| 紋波電壓 (20MHz) | < 70 mVpp | < 100 mVpp | < 240 mVpp | |
| 保持時間 | 115VAC | > 15 ms | > 30 ms | > 20 ms |
| 230VAC | > 80 ms | |||
| 輸入 | ||||
| 輸入相數 | 單相 | |||
| 輸入電壓范圍 | 85-264 VAC (直流輸入范圍 125-375 VDC) | 85-264 VAC (直流輸入范圍 120-375 VDC) 1) |
||
| 輸入頻率 | 47-63 Hz | |||
| 輸入電流 | 115VAC | < 0.40 A | < 1.70 A | < 6.5 A |
| 230VAC | < 0.22 A | < 1.00 A | < 3.2 A | |
| 滿載效率(100% 負載) | 115VAC | > 80.0% | > 87.0% | 88.5% typ. |
| 230VAC | > 88.0% | > 89.0% | ||
| 浪涌電流(冷啟動) | 115VAC | < 30 A | < 60 A | < 10 A |
| 230VAC | < 65 A | < 120 A | < 20 A | |
| 功率因素 | 115VAC | 符合 EN 61000-3-2 | > 0.99 | > 0.98 |
| 230VAC | > 0.90 | > 0.95 | ||
| 漏電流 | 240VAC | < 1mA | - | |
| 264 VAC | — | < 1.5 mA | ||
| 機構 | ||||
| 外殼 / 底架 | SECC Steel | 鋁質 | SECC Steel | |
| 尺寸(H × W × D) | mm | 77 × 51 × 28 | 178 × 97 × 38 | 215 × 120 × 61 |
| inch | 3.03 × 2.01 × 1.10 | 7.01 × 3.82 × 1.50 | 8.46 × 4.72 × 2.40 | |
| 重量 | kg | 0.16 | 0.54 | 1.51 |
| lb | 0.35 | 1.19 | 3.33 | |
| 冷卻方式 | 自然對流 | 強制風冷 (內置風扇) | ||
| 平均故障間隔時間 | > 700,000 hrs | |||
| 環境 | ||||
| 運行溫度 | -10°C 至 +70°C | —20°C 至 +70°C | ||
| 儲存溫度 | -25°C 至 +85°C | -40°C 至 +75°C | ||
| 運行濕度 | 5 至 95% RH (無冷凝) | |||
| 運行海拔高度 | 0 至 3,000 m (0 至 9,840 ft) | |||
